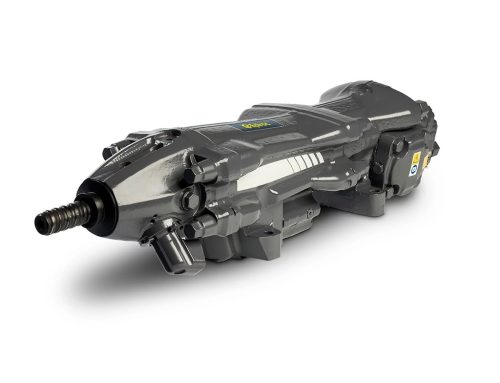

Epiroc COP 2238HD+ Rock Drill Spare Parts and Overhaul kits
Epiroc COP 2238HD+ Rock Drill achieves maximum uptime and precision with genuine spare parts and overhaul kits tailored for rugged mining and construction tasks. High-performance pistons, wear-resistant seals, and durable bushings ensure seamless compatibility and extended equipment life. Overhaul kits provide complete maintenance solutions, streamlining repairs to minimize downtime.
Engineered for reliability, these components withstand extreme conditions while maintaining drilling accuracy. Epiroc’s solutions optimize operational efficiency and reduce long-term costs in demanding environments.
Epiroc COP 2238HD+ Spare Parts: GEAR HOUSING
Parts NO. |
Name |
| 3115503581 | 3115 5035 81 – GEAR HOUSING |
| 3115082100 | 3115 0821 00 – SHAFT |
| 0516150401 | 0516 1504 01 – NEEDLE BEARING |
| 3115082300 | 3115 0823 00 – WASHER |
| 3115027400 | 3115 0274 00 – GEAR WHEEL |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
| 3115082400 | 3115 0824 00 – SLEEVE |
3115600403 |
3115 6004 03 – CUP SEAL |
| 3115274200 | 3115 2742 00 – GUIDE SLEEVE |
| 0663213301 | 0663 2133 01 – O-RING |
| 3115531380 | 3115 5313 80 – ROT.CHUCK.COMPL |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 3115029701 | 3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
Parts NO. |
Name |
| 3115029703 | 3115 0297 03 – SHIM |
| 3115531400 | 3115 5314 00 – DRIVER |
| 3115600488 | 3115 6004 88 – ROT.CH.BUSHING |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 0663212000 | 0663 2120 00 – O-RING |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
0653903800 |
0653 9038 00 – CASKET |
| 0666718801 | 0666 7188 01 – RADIAL LIP SEAL |
| 0335216900 | 0335 2169 00 – CIRCLIP |
| 3115361300 | 3115 3613 00 – STUD |
| 3115027300 | 3115 0273 00 – WASHER |
| 0686925227 | 0686 9252 27 – PROTECTION CAP |
| 0259031100 | 0259 0311 00 – THREAD INSERT |
Epiroc COP 2238HD+ Spare Parts: ROT.CHUCK
Parts NO. |
Name |
| 3115531380 | 3115 5313 80 – ROT.CHUCK.COMPL |
Parts NO. |
Name |
| 3115600435 | 3115 6004 35 – CHUK.BUSH.GUIDE |
Epiroc COP 2238HD+ Spare Parts: INTERM.PART
Parts NO. |
Name |
| 3115527480 | 3115 5274 80 – INTERM. COMPL. |
| 3115284000 | 3115 2840 0 – VALVE SEAT |
| 3115283000 | 3115 2830 0 – VALVE CONE |
| 3115329018 | 3115 3290 18 – SEAL RING |
| 3115600373 | 3115 6003 73 – CONNECT. PLATE |
| 0211196084 | 0211 1960 84 – SCREW |
Parts NO. |
Name |
| 5750531797 | 5750 5317 97 – O-RING |
| 3115298800 | 3115 2988 00 – SEAL RING |
| 3115514601 | 3115 5146 01 – SEAL RING |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 0686911000 | 0686 9110 00 – PROTECTION PLUG |
Epiroc COP 2238HD+ Spare Parts: INTERM. COMPL
Parts NO. |
Name |
| 3115527480 | 3115 5274 80 – INTERM.COMPL. |
| 3115527424 | 3115 5274 24 – INTERMED.PART |
| 3115535804 | 3115 5358 04 – LINER |
| 3115328923 | 3115 3289 23 – SEAL RING |
Parts NO. |
Name |
| 3115328913 | 3115 3289 13 – SEAL RING |
| 3115536000 | 3115 5360 00 – DISK SPRING |
| 3115174606 | 3115 1746 06 – NOZZLE |
Epiroc COP 2238HD+ Spare Parts: INTERMED. PART
Parts NO. |
Name |
| 3115527424 | 3115 5274 24 – INTERMED. PART |
| 0259206100 | 0259 2061 00 – THREAD INSERT |
| 0259006800 | 0259 0068 00 – THREAD INSERT |
| 3115240100 | 3115 2401 00 – PLUG |
Parts NO. |
Name |
| 0686644200 | 0686 6442 00 – PLUG |
| 0661102000 | 0661 1020 00 – SEAL WASHER |
| 3115174606 | 3115 1746 06 – NOZZLE |
Epiroc COP 2238HD+ Spare Parts: CYLINDER
Parts NO. |
Name |
| 3115194480 | 3115 1944 80 – CYLINDER |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
| 3115505002 | 3115 5050 02 – PISTON GUIDE |
| 3115324400 | 3115 3244 00 – PISTON |
3115183300 |
3115 1833 00 – PISTON GUIDE |
| 3115277180 | 3115 2771 80 – SEAL HOUSE COMP |
| 3115176500 | 3115 1765 00 – VALVE PISTON |
| 3115207705 | 3115 2077 05 – VALVE COVER |
3115207604 |
3115 2076 04 – VALVE COVER |
| 0147143803 | 0147 1438 03 – SCREW, HEX HEAD |
| 3115600344 | 3115 6003 44 – REGULATING PIN |
| 3115321400 | 3115 3214 00 – NUT |
Parts NO. |
Name |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 0663613401 | 0663 6134 01 – O-RING |
| 0663213301 | 0663 2133 01 – O-RING |
3115116500 |
3115 1165 00 – STUD |
| 3115211201 | 3115 2112 01 – GUIDE |
| 0259031100 | 0259 0311 00 – THREAD INSERT |
| 0259001100 | 0259 0011 00 – THREAD INSERT |
0259206100 |
0259 2061 00 – THREAD INSERT |
| 3115182500 | 3115 1825 00 – PLUG |
| 0686644704 | 0686 6447 04 – PLUG |
| 0661103400 | 0661 1034 00 – SEAL WASHER |
Epiroc COP 2238HD+ Spare Parts: SEAL HOUSE
Parts NO. |
Name |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 0663210576 | 0663 2105 76 – O-RING |
Parts NO. |
Name |
| 3115277180 | 3115 2771 80 – SEAL HOUSE COMP |
| 3115084500 | 3115 0845 00 – SEAL KIT |
| 0663613500 | 0663 6135 00 – O-RING |
Epiroc COP 2238HD+ Spare Parts: BACK HEAD
Parts NO. |
Name |
| 3115600440 | 3115 6004 40 – BACK HEAD |
| 0147148103 | 0147 1481 03 – SCREW, HEX HEAD |
Parts NO. |
Name |
| 0663613800 | 0663 6138 00 – O-RING |
Epiroc COP 2238HD+ Spare Parts: HYDRAULIC MOTOR
Parts NO. |
Name |
| 3115347380 | 3115 3473 80 – HYDRAULIC MOTOR |
| 3115347390 | 3115 3473 90 – SEAL KIT |
| 3115581203 | 3115 5812 03 – SCREW |
3115347391 |
3115 3473 91 – KIT |
| 3113347381 | 3113 3473 81 – HYDRAULIC MOTOR |
| 3115288780 | 3115 2887 80 – CONNECT. PLATE |
| 3115288800 | 3115 2888 00 – PRESSURE SCREW |
Parts NO. |
Name |
| 3113347390 | 3113 3473 90 – SEAL KIT |
| 3115581204 | 3115 5812 04 – SCREW |
| 3115347382 | 3115 3473 82 – HYDRAULIC MOTOR |
3115347383 |
3115 3473 83 – HYDRAULIC MOTOR |
| 3115581205 | 3115 5812 05 – SCREW |
| 5750531797 | 5750 5317 97 – O-RING |
| 0663210936 | 0663 2109 36 – O-RING |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Epiroc COP 2238HD+ Spare Parts: ACCUMULATOR
Parts NO. |
Name |
| 3115345181 | 3115 3451 81 – ACCUMULATOR |
| 3115187000 | 3115 1870 00 – PROTECTION PLUG |
| 3115182201 | 3115 1822 01 – DIAPHRAGM |
3115376800 |
3115 3768 00 – VALVE |
| 3115351181 | 3115 3511 81 – ACCUMULATOR |
| 3115187000 | 3115 1870 00 – PROTECTION PLUG |
| 3115182201 | 3115 1822 01 – DIAPHRAGM |
Parts NO. |
Name |
| 3115261720 | 3115 2617 20 – PLUG |
| 3115600550 | 3115 6005 50 – LABEL SET |
| 3115270210 | 3115 2702 10 – SCREW |
0663612100 |
0663 6121 00 – O-RING |
| 3115376800 | 3115 3768 00 – VALVE |
| 3115600551 | 3115 6005 51 – LABEL SET |
| 3115270210 | 3115 2702 10 – SCREW |
Epiroc COP 2238HD+ Spare Parts: VALVE
Parts NO. |
Name |
| 3115376800 | 3115 3768 00 – VALVE |
| 3115376802 | 3115 3768 02 – VALVE CAP |
| 0088001654 | 0088 0016 54 – Label |
Parts NO. |
Name |
| 3115376803 | 3115 3768 03 – SEAL |
| 3176531300 | 3176 5313 00 – CAP |
| 3715059700 | 3715 0597 00 – CAP |
Epiroc COP 2238HD+ Spare Parts: RETURN ACCUM
Parts NO. |
Name |
| 3115600934 | 3115 6009 34 – RETURN ACCUM. |
| 3115227580 | 3115 2275 80 – HOLDER SET |
| 0147148303 | 0147 1483 03 – SCREW, HEX HEAD |
| 3115261520 | 3115 2615 20 – TUBE |
3115600451 |
3115 6004 51 – TUBE COVER |
| 3115288600 | 3115 2886 00 – PIPE |
| 3115288900 | 3115 2889 00 – PRESSURE SCREW |
| 0663210937 | 0663 2109 37 – O-RING |
| 0663212901 | 0663 2129 01 – O-RING |
| 3115261800 | 3115 2618 00 – END PIECE |
| 0663212800 | 0663 2128 00 – O-RING |
Parts NO. |
Name |
| 3115192602 | 3115 1926 02 – DIAPHRAGM |
| 3115261720 | 3115 2617 20 – PLUG |
| 9125619100 | 9125 6191 00 – O-RING |
| 0661100029 | 0661 1000 29 – SEAL WASHER 27.05×34.93×2.47 |
3176652800 |
3176 6528 00 – NIPPLE |
| 3115227500 | 3115 2275 00 – CLAMP |
| 3115600457 | 3115 6004 57 – HOLDER |
| 0147132803 | 0147 1328 03 – SCREW, HEX HEAD |
| 0291112819 | 0291 1128 19 – LOCK NUT |
| 3115600458 | 3115 6004 58 – HOLDER |
Epiroc COP 2238HD+ Spare Parts: OPTIONAL SET
Parts NO. |
Name |
| 3115272480 | 3115 2724 80 – DISASSEMB.TOOLS |
| 3115584430 | 3115 5844 30 – FIXTURE |
| 3128061000 | 3128 0610 00 – SPACER |
| 3115600192 | 3115 6001 92 – CHARGIN DEVICE |
0371110002 |
0371 1100 02 – LIFTING EYE |
| 3115322300 | 3115 3223 00 – REG. PLUG |
| 3128321113 | 3128 3211 13 – HOSE ASSEMBLY |
| 3115288780 | 3115 2887 80 – CONNECT.PLATE |
| 3115504410 | 3115 5044 10 – FLUSHING HEAD |
Parts NO. |
Name |
| 3115504511 | 3115 5045 11 – GUIDE |
| 3115504420 | 3115 5044 20 – FLUSHING HEAD |
| 3115504521 | 3115 5045 21 – GUIDE |
| 3115347390 | 3115 3473 90 – SEAL KIT |
3115917090 |
3115 9170 90 – O-RING SET |
| 3115917094 | 3115 9170 94 – SEAL KIT |
| 3115924190 | 3115 9241 90 – OVERHAUL KIT |
| 3115924191 | 3115 9241 91 – OVERHAUL KIT |
| 3115561694 | 3115 5616 94 – CONVERSION KIT |
Epiroc COP 2238HD+ Spare Parts: TOOLS SET
Parts NO. |
Name |
| 9106101540 | 9106 1015 40 – TORQUE KEY |
| 9106101541 | 9106 1015 41 – TORQUE KEY |
| 3115190280 | 3115 1902 80 – PRESSING TOOL |
| 3115031800 | 3115 0318 00 – EXTENSION |
| 3115101900 | 3115 1019 00 – MANDREL |
3115111300 |
3115 1113 00 – MANDREL |
| 3115190300 | 3115 1903 00 – MANDREL |
| 3115031200 | 3115 0312 00 – MANDREL |
| 3115031300 | 3115 0313 00 – MANDREL |
| 3115031400 | 3115 0314 00 – MANDREL |
| 3115187700 | 3115 1877 00 – ASSEMBLY TOOL |
| 3115034300 | 3115 0343 00 – WRENCH ADAPTER |
3115034400 |
3115 0344 00 – WRENCH ADAPTER |
| 3115285980 | 3115 2859 80 – ASSEMBLY TOOL |
| 3115251900 | 3115 2519 00 – TIGHTENING TOOL |
| 0462701034 | 0462 7010 34 – ASSEMBLY TOOL |
| 3115162700 | 3115 1627 00 – ASSEMBLY TOOL |
| 3115122600 | 3115 1226 00 – ASSEMBLY TOOL |
| 3115162800 | 3115 1628 00 – ASSEMBLY TOOL |
Parts NO. |
Name |
| 3091045590 | 3091 0455 90 – EXTRACTOR |
| 3115028400 | 3115 0284 00 – WASHER |
| 3115379980 | 3115 3799 80 – PRES. GAUGE SET |
| 3115601008 | 3115 6010 08 – TORQUE WRENCH |
| 3115189700 | 3115 1897 00 – ASSEMBLY PLATE |
3115189600 |
3115 1896 00 – MANDREL |
| 3115159400 | 3115 1594 00 – PLATE |
| 3115189900 | 3115 1899 00 – MANDREL |
| 3115216300 | 3115 2163 00 – MANDREL |
| 3115226500 | 3115 2265 00 – NUT |
| 3115242200 | 3115 2422 00 – PRESSING TOOL |
3115247100 |
3115 2471 00 – GUIDE RING |
| 0686424900 | 0686 4249 00 – PLUG |
| 3115337310 | 3115 3373 10 – ASSEMBLY TOOL |
| 3115337420 | 3115 3374 20 – ASSEMBLY TOOL |
| 3115525000 | 3115 5250 0 – DISASSEMB.TOOLS |
| 3115600123 | 3115 6001 23 – PULLER |
| 3115380400 | 3115 3804 00 – EXTRACTOR |
Epiroc COP 2238HD+ Spare Parts: PRES. GAUGE -FIXTURE – OVERHAUL
Parts NO. |
Name |
| 3115379980 | 3115 3799 80 – PRES. GAUGE SET |
| 3115574800 | 3115 5748 00 – CONNECTION |
| 3115584430 | 3115 5844 30 – FIXTURE |
Parts NO. |
Name |
| 0111168625 | 0111 1686 25 – LOCKING CLIP |
| 0259008400 | 0259 0084 00 – THREAD INSERT |
| 0211136403 | 0211 1364 03 – SCREW |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Epiroc COP 2238HD+ Spare Parts: CHARGIN DEVICE
Parts NO. |
Name |
| 3115600192 | 3115 6001 92 – CHARGIN DEVICE |
| 3115600193 | 3115 6001 93 – LABEL SET |
| 3115901187 | 3115 9011 87 – SPARE PARTS SET |
| 3115600322 | 3115 6003 22 – BALL VALVE |
| 3115342508 | 3115 3425 08 – NEEDLE VALVE |
3115342504 |
3115 3425 04 – MANOMETER |
| 3115600201 | 3115 6002 01 – HOSE |
| 3115600202 | 3115 6002 02 – HOSE |
| 3115342510 | 3115 3425 10 – CONNECTION |
| 3115600204 | 3115 6002 04 – MANOMETER |
| 3115342502 | 3115 3425 02 – BOTTLE CONNECT |
Parts NO. |
Name |
| 3115574800 | 3115 5748 00 – CONNECTION |
| 3115600210 | 3115 6002 10 – REGULATOR |
| 3115601421 | 3115 6014 21 – VALVE,SAFETY |
| 3115601422 | 3115 6014 22 – ELBOW |
| 3115601423 | 3115 6014 23 – CONNECTOR |
3115601424 |
3115 6014 24 – ADAPTER |
| 3115601425 | 3115 6014 25 – PIPE,CROSS |
| 3115601426 | 3115 6014 26 – CONNECTOR |
| 3115601427 | 3115 6014 27 – REDUCER |
| 3115601428 | 3115 6014 28 – CONNECTOR |
| 3115601429 | 3115 6014 29 – ELBOW |
Epiroc COP 2238HD+ Spare Parts: O-RING SET
Parts NO. |
Name |
| 3115917090 | 3115 9170 90 – O-RING SET |
| 0663210576 | 0663 2105 76 – O-RING |
| 0663210596 | 0663 2105 96 – O-RING |
| 0663210937 | 0663 2109 37 – O-RING |
| 0663211000 | 0663 2110 00 – O-RING |
0663211500 |
0663 2115 00 – O-RING |
| 0663212000 | 0663 2120 00 – O-RING |
| 0663212800 | 0663 2128 00 – O-RING |
| 0663212901 | 0663 2129 01 – O-RING |
| 0663213301 | 0663 2133 01 – O-RING |
| 0663213400 | 0663 2134 00 – O-RING |
| 0663214300 | 0663 2143 00 – O-RING |
| 0663214400 | 0663 2144 00 – O-RING |
0663214501 |
0663 2145 01 – O-RING |
| 0663612100 | 0663 6121 00 – O-RING |
| 0663613401 | 0663 6134 01 – O-RING |
| 0663613500 | 0663 6135 00 – O-RING |
| 0663613501 | 0663 6135 01 – O-RING |
| 0663613600 | 0663 6136 00 – O-RING |
| 0663613800 | 0663 6138 00 – O-RING |
Parts NO. |
Name |
| 0663614300 | 0663 6143 00 – O-RING |
| 0663614400 | 0663 6144 00 – O-RING |
| 0663615100 | 0663 6151 00 – O-RING |
| 0663905600 | 0663 9056 00 – O-RING |
| 0663910401 | 0663 9104 01 – O-RING |
| 0663915800 | 0663 9158 00 – O-RING |
| 3115298800 | 3115 2988 00 – SEAL RING |
3115324500 |
3115 3245 00 – SEAL RING |
| 3115328913 | 3115 3289 13 – SEAL RING |
| 3115328923 | 3115 3289 23 – SEAL RING |
| 3115329018 | 3115 3290 18 – SEAL RING |
| 3115514601 | 3115 5146 01 – SEAL RING |
| 9125619100 | 9125 6191 00 – O-RING |
9900000300 |
9900 0003 00 – PLASTIC BAG |
| 0663210053 | 0663 2100 53 – O-RING |
| 0663213300 | 0663 2133 00 – O-RING |
| 5750531797 | 5750 5317 97 – O-RING |
| 0663210936 | 0663 2109 36 – O-RING |
| 0663211400 | 0663 2114 00 – O-RING |
Epiroc COP 2238HD+ Spare Parts: SEAL KIT
Parts NO. |
Name |
| 3115917094 | 3115 9170 94 – SEAL KIT |
| 3115917090 | 3115 9170 90 – O-RING SET |
| 3115032700 | 3115 0327 00 – GASKET |
| 0661100029 | 0661 1000 29 – SEAL WASHER 27.05×34.93×2.47 |
| 0663210937 | 0663 2109 37 – O-RING |
| 0663212800 | 0663 2128 00 – O-RING |
9125619100 |
9125 6191 00 – O-RING |
| 3115302400 | 3115 3024 00 – WIPER |
| 3115233300 | 3115 2333 00 – CUP SEAL |
| 3115519000 | 3115 5190 00 – CUP SEAL |
| 3115328917 | 3115 3289 17 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115344500 | 3115 3445 00 – SEAL RING |
| 0666719001 | 0666 7190 01 – RADIAL LIP SEAL |
Parts NO. |
Name |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
| 0653903800 | 0653 9038 00 – GASKET |
| 0666718801 | 0666 7188 01 – RADIAL LIP SEAL |
| 0686925227 | 0686 9252 27 – PROTECTION CAP |
| 3115600403 | 3115 6004 03 – CUP SEAL |
0661102000 |
0661 1020 00 – SEAL WASHER |
| 3115600979 | 3115 6009 79 – SEAL KIT |
| 0661103400 | 0661 1034 00 – SEAL WASHER |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 3115084500 | 3115 0845 00 – SEAL KIT |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
| 3115000979 | 3115 0009 79 – SEAL KIT |
Epiroc COP 2238HD+ Spare Parts: OVERHAUL KIT
Parts NO. |
Name |
| 3115924190 | 3115 9241 90 – OVERHAUL KIT |
| 3115917094 | 3115 9170 94 – SEAL KIT |
| 3115028600 | 3115 0286 00 – DOME NUT |
| 3115028700 | 3115 0287 00 – WASHER |
| 0335213000 | 0335 2130 00 – CIRCLIP |
3115354800 |
3115 3548 00 – NUT |
| 3115182201 | 3115 1822 01 – DIAPHRAGM |
| 3115270210 | 3115 2702 10 – SCREW |
| 3115600550 | 3115 6005 50 – LABEL SET |
| 3115600551 | 3115 6005 51 – LABEL SET |
| 3115192602 | 3115 1926 02 – DIAPHRAGM |
3115261710 |
3115 2617 10 – PLUG |
| 0147147903 | 0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
| 0335217300 | 0335 2173 00 – CIRCLIP |
| 3115504000 | 3115 5040 00 – SIDE BOLT |
| 0335216900 | 0335 2169 00 – CIRCLIP |
| 3115361300 | 3115 3613 00 – STUD |
| 0516150401 | 0516 1504 01 – NEEDLE BEARING |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
| 3115600435 | 3115 6004 35 – CHUK.BUSH.GUIDE |
Parts NO. |
Name |
| 3115029701 | 3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
| 3115029703 | 3115 0297 03 – SHIM |
| 3115145700 | 3115 1457 00 – SIDE BOLT |
| 0211196084 | 0211 1960 84 – SCREW |
0147143803 |
0147 1438 03 – SCREW, HEX HEAD |
| 0147148103 | 0147 1481 03 – SCREW, HEX HEAD |
| 3115924191 | 3115 9241 91 – OVERHAUL KIT |
| 3115376800 | 3115 3768 00 – VALVE |
| 3115504501 | 3115 5045 01 – GUIDE |
| 3115299000 | 3115 2990 00 – STOP RING |
| 3115531400 | 3115 5314 00 – DRIVER |
| 3115600488 | 3115 6004 88 – ROT.CH.BUSHING |
3115535804 |
3115 5358 04 – LINER |
| 3115536000 | 3115 5360 00 – DISK SPRING |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 3115505002 | 3115 5050 02 – PISTON GUIDE |
| 3115324400 | 3115 3244 00 – PISTON |
| 3115183300 | 3115 1833 00 – PISTON GUIDE |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
Epiroc COP 2238HD+ Spare Parts: CONVERSION KIT
Parts NO. |
Name |
| 3115561694 | 3115 5616 94 – CONVERSION KIT |
| 3115188090 | 3115 1880 90 – SEAL KIT |
| 3115917090 | 3115 9170 90 – O-RING SET |
| 3115531390 | 3115 5313 90 – CONVERSION KIT |
| 3115527480 | 3115 5274 80 – INTERM. COMPL. |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
Parts NO. |
Name |
| 3115531390 | 3115 5313 90 – CONVERSION KIT |
| 3115029790 | 3115 0297 90 – SHIMS SET |
| 3115531380 | 3115 5313 80 – ROT_CHUCK_COMPL |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 3115531400 | 3115 5314 00 – DRIVER |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Epiroc COP 2238HD+ Spare Parts: ROCK DRILL
Parts NO. |
Name |
| 3115504282 | 3115 5042 82 – FRONT PART COMP |
| 3115223100 | 3115 2231 00 – DRILL COLLAR |
| 3115028600 | 3115 0286 00 – DOME NUT |
| 3115028700 | 3115 0287 00 – WASHER |
| 3115145700 | 3115 1457 00 – SIDE BOLT |
| 3115504000 | 3115 5040 00 – SIDE BOLT |
3115347380 |
3115 3473 80 – HYDRAULIC MOTOR |
| 3115347381 | 3115 3473 81 – HYDRAULIC MOTOR |
| 3115347382 | 3115 3473 82 – HYDRAULIC MOTOR |
| 3115347383 | 3115 3473 83 – HYDRAULIC MOTOR |
| 3115027700 | 3115 0277 00 – COUPLING |
| 0335213000 | 0335 2130 00 – CIRCLIP |
| 3115032700 | 3115 0327 00 – GASKET |
| 3115354800 | 3115 3548 00 – NUT |
3115345181 |
3115 3451 81 – ACCUMULATOR |
| 3115351181 | 3115 3511 81 – ACCUMULATOR |
| 3115600934 | 3115 6009 34 – RETURN ACCUM. |
| 0088001654 | 0088 0016 54 – PRODUCT GRAPHICS |
| 3176651200 | 3176 6512 00 – NIPPLE |
| 3176651400 | 3176 6514 00 – NIPPLE |
| 3115504200 | 3115 5042 00 – FRONT PART |
| 3115504501 | 3115 5045 01 – GUIDE |
| 3115302400 | 3115 3024 00 – WIPER |
3115504405 |
3115 5044 05 – FLUSHING HEAD |
| 3115233300 | 3115 2333 00 – CUP SEAL |
| 3115519000 | 3115 5190 00 – CUP SEAL |
| 3115328917 | 3115 3289 17 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115504312 | 3115 5043 12 – CONNECT. PLATE |
| 3115182500 | 3115 1825 00 – PLUG |
| 3115344500 | 3115 3445 00 – SEAL RING |
0147147903 |
0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 3115299000 | 3115 2990 00 – STOP RING |
| 0663214501 | 0663 2145 01 – O-RING |
| 0663214300 | 0663 2143 00 – O-RING |
| 3115503680 | 3115 5036 80 – COVER COMPL. |
| 3115503610 | 3115 5036 10 – COVER |
0666719001 |
0666 7190 01 – RADIAL LIP SEAL |
| 0335217300 | 0335 2173 00 – CIRCLIP |
| 0663615100 | 0663 6151 00 – O-RING |
| 0102047300 | 0102 0473 00 – PIN |
| 3115503581 | 3115 5035 81 – GEAR HOUSING |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
| 0653903800 | 0653 9038 00 – GASKET |
0666718801 |
0666 7188 01 – RADIAL LIP SEAL |
| 0335216900 | 0335 2169 00 – CIRCLIP |
| 3115361300 | 3115 3613 00 – STUD |
| 3115027300 | 3115 0273 00 – WASHER |
| 0686925227 | 0686 9252 27 – PROTECTION CAP |
| 3115082100 | 3115 0821 00 – SHAFT |
0516150401 |
0516 1504 01 – NEEDLE BEARING |
| 3115082300 | 3115 0823 00 – WASHER |
| 3115027400 | 3115 0274 00 – GEAR WHEEL |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
| 3115082400 | 3115 0824 00 – SLEEVE |
Parts NO. |
Name |
| 0663213301 | 0663 2133 01 – O-RING |
| 3115531380 | 3115 5313 80 – ROT.CHUCK,COMPL |
| 3115600435 | 3115 6004 35 – CHUK.BUSH.GUIDE |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 3115029701 | 3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
3115029703 |
3115 0297 03 – SHIM |
| 3115531400 | 3115 5314 00 – DRIVER |
| 3115600488 | 3115 6004 88 – ROT.CH.BUSHING |
| 3115324500 | 3115 3245 00 – SEAL.RING |
| 0663212000 | 0663 2120 00 – O-RING |
| 3115527480 | 3115 5274 80 – INTERM. COMPL |
| 3115527424 | 3115 5274 24 – INTERMED.PART |
| 3115535804 | 3115 5358 04 – LINER |
3115328923 |
3115 3289 23 – SEAL.RING |
| 3115328913 | 3115 3289 13 – SEAL.RING |
| 3115536000 | 3115 5360 00 – DISK SPRING |
| 3115174606 | 3115 1746 06 – NOZZLE |
| 3115238400 | 3115 2384 00 – VALVE SEAT |
| 3115238300 | 3115 2383 00 – VALVE CONE |
| 3115329018 | 3115 3290 18 – SEAL.RING |
| 3115600373 | 3115 6003 73 – CONNECT.PLATE |
0211196084 |
0211 1960 84 – SCREW |
| 5750531797 | 5750 5317 97 – O-RING |
| 3115298800 | 3115 2988 00 – SEAL.RING |
| 3115514601 | 3115 5146 01 – SEAL.RING |
| 3115600470 | 3115 6004 70 – SEAL.KIT |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 0686911000 | 0686 9110 00 – PROTECTION PLUG |
| 3115194480 | 3115 1944 80 – CYLINDER |
3115116500 |
3115 1165 00 – STUD |
| 3115211201 | 3115 2112 01 – GUIDE |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 0663210576 | 0663 2105 76 – O-RING |
| 3115505002 | 3115 5050 02 – PISTON GUIDE |
| 3115324400 | 3115 3244 00 – PISTON |
| 3115183300 | 3115 1833 00 – PISTON GUIDE |
| 3115277180 | 3115 2771 80 – SEAL HOUSE COMP |
3115084500 |
3115 0845 00 – SEAL KIT |
| 0663613500 | 0663 6135 00 – O-RING |
| 3115176500 | 3115 1765 00 – VALVE PISTON |
| 3115207705 | 3115 2077 05 – VALVE COVER |
| 3115207604 | 3115 2076 04 – VALVE COVER |
| 0147143803 | 0147 1438 03 – SCREW, HEX HEAD |
| 3115600344 | 3115 6003 44 – REGULATING PIN |
| 3115321400 | 3115 3214 00 – NUT |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
0663613401 |
0663 6134 01 – O-RING |
| 3115600440 | 3115 6004 40 – BACK HEAD |
| 0147148103 | 0147 1481 03 – SCREW, HEX HEAD |
| 0663613800 | 0663 6138 00 – O-RING |
| 0685925026 | 0685 9250 26 – PLUG |
| 0685925027 | 0685 9250 27 – PLUG |
| 3115160391 | 3115 1603 91 – NIPPLE SET |
| 3115600403 | 3115 6004 03 – CUP SEAL |
| 3115274200 | 3115 2742 00 – GUIDE SLEEVE |
Epiroc COP 2238HD+ Spare Parts: FRONT PART COMP
Parts NO. |
Name |
| 3115504282 | 3115 5042 82 – FRONT PART COMP |
| 3115504200 | 3115 5042 00 – FRONT PART |
| 3115504405 | 3115 5044 05 – FLUSHING HEAD |
| 3115233300 | 3115 2333 00 – CUP SEAL |
| 3115519000 | 3115 5190 00 – CUP SEAL |
3115504501 |
3115 5045 01 – GUIDE |
| 3115302400 | 3115 3024 00 – WIPER |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115299000 | 3115 2990 00 – STOP RING |
Parts NO. |
Name |
| 3115504312 | 3115 5043 12 – CONNECT. PLATE |
| 3115182500 | 3115 1825 00 – PLUG |
| 0147147903 | 0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
| 3115344500 | 3115 3445 00 – SEAL RING |
3115328917 |
3115 3289 17 – SEAL RING |
| 0663214300 | 0663 2143 00 – O-RING |
| 0663214501 | 0663 2145 01 – O-RING |
| 3115504200 | 3115 5042 00 – FRONT PART |
| 0259008400 | 0259 0084 00 – THREAD INSERT |
Epiroc COP 2238HD+ Spare Parts: COVER GROUP
Parts NO. |
Name |
| 3115503680 | 3115 5036 80 – COVER COMPL. |
| 0663615100 | 0663 6151 00 – O-RING |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 0102047300 | 0102 0473 00 – PIN |
Parts NO. |
Name |
| 3115503680 | 3115 5036 80 – COVER COMPL |
| 3115503610 | 3115 5036 10 – COVER |
| 0666719001 | 0666 7190 01 – RADIAL LIP SEAL |
| 0335217300 | 0335 2173 00 – CIRCLIP |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
At ANWSK, we specialize in distributing the products of air compressors, mining machinery, drill rigs, mineral processing machinery, and related genuine original spare parts. These brands include Atlas Copco, Ingersoll Rand, Epiroc, Chicago Pneumatic, Sandvik, Sullair, Hitachi, CAT, BOGE, etc.
- Direct Sourcing & Authenticity:We source directly from manufacturers like Atlas Copco, CAT, etc. ensuring all spare parts are 100% original and new.
- Industry Expertise:With extensive experience across diverse sectors, we provide tailored solutions that enhance productivity and reliability.
- Comprehensive Support:We offer full-service support, including technical consultation, installation, maintenance, and emergency assistance.
- Commitment to Innovation:We stay updated with the latest advancements, providing cutting-edge technology for improved efficiency and sustainability.
ANWSK is your trusted partner for high-quality air compressor solutions, delivering value and reliability to every customer.
Inner packing:Poly bags
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
- If delivery time is not a critical factor and you prefer economical freight charges, you have the option of choosing postal air mail or sea shipping with a registered number. This method typically takes 15-30 days.
- For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
1. Who are we?
Established in Guangzhou, China, we operate within diverse markets, with a significant presence in the Domestic Market(20.00%),Western Europe(15.00%),Southeast Asia(12.00%),Southern Europe(10.00%),North America(7.00%),Eastern Europe(7.00%),Northern Europe(5.00%),South
America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(3.00%),South Asia(2.50%),Africa(2.50%),Central America(1.00%). Our team, consisting of approximately 51-100 professionals, is dedicated to serving our customers worldwide.
2. Quality Assurance:
Ensuring top-notch quality is a cornerstone of our operation. We adhere to OE standards and subject every product to rigorous testing before shipment.
3.Our Product Range:
Explore our comprehensive selection, featuring air filter cartridges, air filters, oil/fuel filters, hydraulic filters, oil separators, air compressor parts, and more.
4. Why Choose Us:
What sets us apart is our unique history as a formerly state-owned enterprise with almost 30 years of expertise. We prioritize quality and offer competitive pricing, making us a reliable choice in the market.
5. Our Services:
- Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Accepted Payment Currencies: USD, EUR, CNY
- Payment Types: T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
- Languages Spoken: English, Chinese
Choose us for reliable products, quality assurance, and a diverse range of services tailored to your needs.
Answk Technology Co., Ltd was established in 2010 and has evolved into a versatile provider, specializing in mechanical and electronic products. Our technical team possesses 30 years of manufacturing experience, so factory prioritizes independent research and sources premium materials globally. Emphasizing quality control, we design major production machines in-house and offer specialized OEM and ODM services to meet custom needs across diverse industries, including the production of high- quality air compressor parts and related components, such as oil filters, air filters, oil/fuel filters, hydraulic filters, oil separators, air filter cartridges for cost-effective solutions.
We provide the products of original air compressors, mining machinery, drill rigs, mineral processing machinery, and related original spare parts from multiple brands (such as Atlas Copco, Ingersoll Rand, Epiroc, Chicago Pneumatic, Sandvik, Sullair, Hitachi, CAT, BOGE, etc.). We aslo manufacture the high-quality filtrations for air compressors, mining machinery, drill rigs, mineral processing machinery, etc.
Committed to innovation and excellence, Our Factory is a trusted partner for businesses seeking customized solutions. Our empowering OEM&ODM service leverages manufacturing expertise, seamlessly integrating your unique ideas into the production process. Whether it’s a specific design or product modifications, we deliver high-quality, bespoke solutions with precision and efficiency.
